Integrated Amplifier


PREMIUM SILVER / PREMIUM BLACK

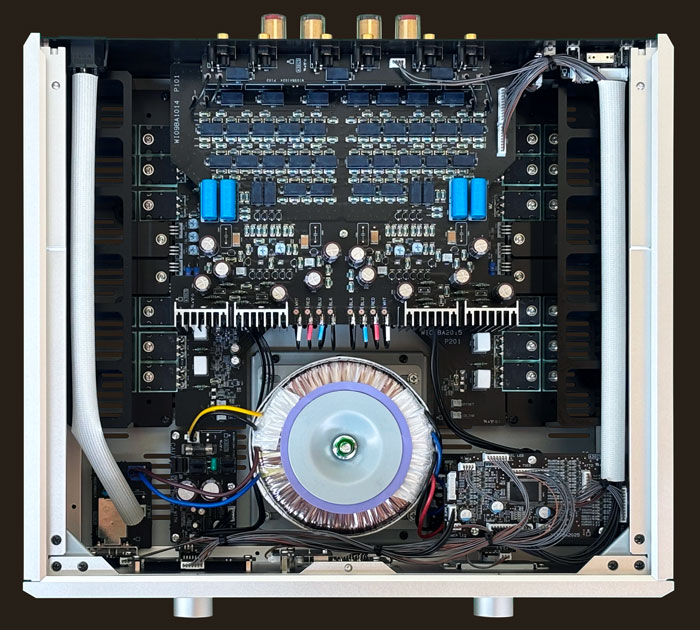

[Inner upper section]

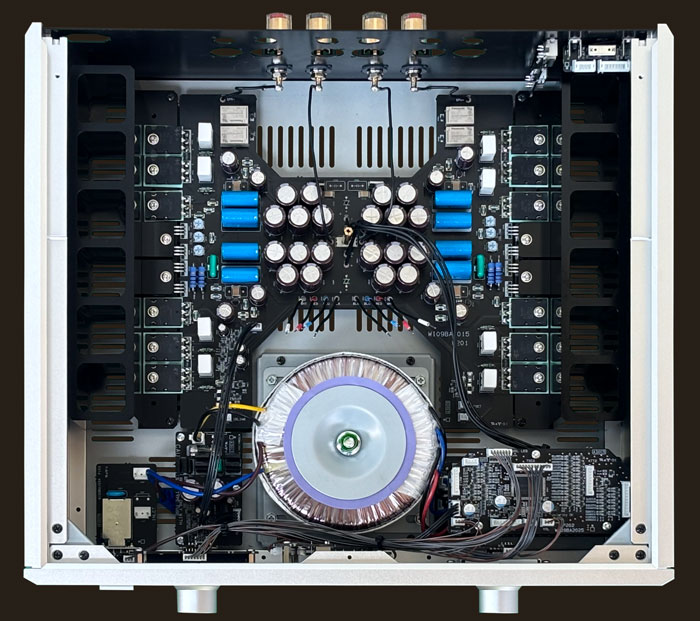

[Inner lower section]
Parallel Push-pull Output Stage
The output stage features a parallel push-pull configuration with the same high-speed, high-power TO3P transistors used in the A-3.

Precise Pairing of Transistors
Each transistor is precisely paired by hFE, eliminating the tonal smearing typically associated with parallel push-pull designs.

Reinforced Driver Stage with TO3P Transistors
The driver stage also employs TO3P transistors identical to those in the output stage.
By maintaining a high standing current in the drivers, hFE fluctuations caused by current changes in the output stage are instantly compensated, delivering exceptionally strong drive capability.
This marks the key difference from the original model and represents a technological breakthrough.

Refined Voltage Amplification
A newly developed voltage amplification circuit, created specifically for the A-2 VER2, significantly simplifies the circuit and introduces a completely re-engineered bias circuit for improved stability and performance.

High-Capacity Power Supply
A large, unimpregnated toroidal power transformer has been adopted. By lowering the output voltage compared with the original, the A-2 VER2 prioritizes instantaneous current supply capability at low impedances over maximum output at 8 Ω, ensuring dynamic and responsive performance.

Parallel Push-pull Output Stage

Unfixed structure
Increased clearance of the unfixed top cover allows for a more open feel. Other features incorporate the know-how of the 3 series in the chassis structure. (E-2 VER2 and D-2 VER2 are also the same.)

Specifications
Model name   A-2 VER2 SH(PREMIUM SILVER)/A-2 VER2 BH(PREMIUM BLACK)/A-2 VER2 ST(PREMIUM SILVER)/A-2 VER2 BT(PREMIUM BLACK)
Rated output   80W×2(8ohm) ,160W×2 (4ohm)
Total harmonic distortion   0.16% (1W 8Ω)
Frequency characteristic   SPEAKER(8ohm 1W):3Hz to 240kHz (±1.0dB)
Input sensitivity/impedance   LINE1,2,3(balance):700mV/16kohm, LINE4,5,6:700mV/8kohm
SN ratio   110dB(IHF A network)
Power voltage   220V AC 50Hz(A-2 VER2 H), 115V AC 60Hz(A-2 VER2 T)
Power consumption   210W(A-2 VER2 H), 235W(A-2 VER2 T), 70W(during idling)
Maximum external dimensions   Main unit:430(W)×162(H)×423(D)mm
Weight   Approximately 20 kg

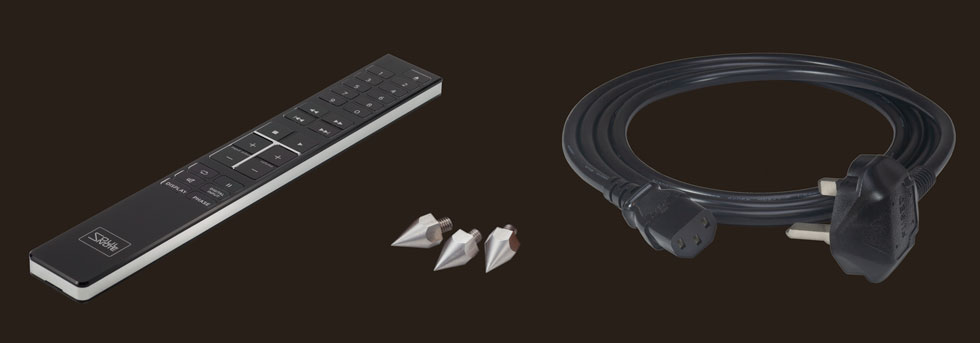

Included accessories   Remote control,spikes,power cable
Included accessories
Remote control,spikes,power cable
User Manual
Notes on this product

Temperature settings
The circuit current in SOULNOTE products relies on solutions with the highest emphasis on sound quality and safety. Functionality and sound quality generally improve when the transistors operate at higher temperature.。

Anti-vibration housing
SOULNOTE products place the highest emphasis on sound quality, so the top cover, chassis, and other components do not employ vibration isolation.

Regarding use of electronic equipment cleaners and contact rejuvenation products on SOULNOTE products
Commercially available electronic equipment cleaners and contact rejuvenation products could damage the resin components of SOULNOTE AC inlets. Do not use these types of chemical products on SOULNOTE equipment.
